How to Build Your Own Epoxy Kit:
- Determine Your square footage.
- Order appropriate amount of primer.
- Order appropriate amount of base coat.
- Order appropriate amount of flake -- We use 1# per 100 sq. ft. for a heavy random broadcast. We use 20# per 100 sq. Ft. for full broadcast.
- Order the appropriate top coat. For random broadcast systems, 1 coat of our aliphatic urethane is appropriate. You can use our epoxy top coat for a thicker build. For full broadcast we either suggest multiple coats of the Aliphatic urethane or a single coat of the epoxy top coat. For ultimate durability you can do a clear epoxy topcoat followed by a clear aliphatic top coat.
- We like the use of top coats. Many consumers will but just the epoxy down. While topcoat is in fact optional, we highly recommend it.
What Do I Still Need?
- *Prep Materials: You will need to decide if you want to acid etch or grind your concrete to prepare it for the coating. You do not need to do both.
- *NIOSH-Approved paint respirators for everyone working on the install
- *Painter’s tape (Important: Tape needs to be pulled while the coating is wet and reapplied to each coat to avoid the tape getting stuck to your coating
- Clothes that you don’t care about. The coating is very difficult to remove from clothing and skin if it dries onto them.
- Shoe covers to avoid unwanted dirt or contaminants in the coating
- Xylene or Mineral Spirits for removing product from surfaces in case of an accident
*-Required for a successful installation. The other items on this list are strongly recommended. Give us a call if you are unsure on what items you need.
Epoxy Floor Surface Preparation
Untreated concrete floors can easily and safely be prepared without grinding or the use of muriatic acid. We recommend our Ghostshield Eco-Etch 1001 product.
Grinding is perhaps the best bet when it comes to preparing a garage epoxy floor. Rental centers have the Diamabrush product on hand and if you are unable to locate one locally we have them available. The most aggressive method is shot blasting and this is overkill for this specific system. A good garage floor epoxy system requires proper floor preparation. Epoxy will fail if you do not properly etch or grind.
Ready for Prime Time
A garage floor epoxy system needs to have a primer. It’s that simple. It is a scientific fact that epoxy floor coating systems that utilize a primer have a stronger bond, are less prone to failure, are more DIY friendly and have less installation related issues. Imagine spending 3 days installing your dream floor, only to have it ruined by air bubbles. A primer fixes that. Imagine having it removed by a hot tire. A primer and proper prep will fix that as well. A primer is a very low cost and easy to install component that greatly increases the likelihood of success with epoxy. It is included in these kits.
High Solids Vs 100% Solids Epoxy
The mass marketing of watered down epoxy flooring products to the DIY market has forced high-end garage floor epoxy manufacturers and dealers to differentiate themselves. One way this is done is by talking about the benefits of 100% solids epoxy. The truth is a true 100% solids epoxy is very difficult for the average customer to install properly. On the flip side, cheap garage floor epoxy consisting of mostly water or solvent is nothing more than what we sell as primer. There has to be a balance, right?
Our two-part garage floor epoxy system has a Part “A” and a Part “B”. The Part “A” is the epoxy resin and the Part “B” is the hardener. Our Part “A”, the epoxy resin, is 100% solids. The Part “B” hardener has a small amount of solvents mixed in. This allows for ease of application, longer pot life, and better adhesion. Many companies would call this system 100% solids. The truth is it is 93% solids by weight which creates the ideal combination of thickness, durability, and ease of installation. If you truly need 100% solids, we sell plenty of it. But ask yourself “why?” Is it because you really need it, or because you have bought into the salesmanship the industry has out there.
Single Component Aliphatic Urethane Topcoat
Now you have a primed floor that has been coated with a high-quality epoxy. Can you leave it at that? Although we sell a system without a topcoat for special applications and California compliance, we believe a quality aliphatic urethane topcoat is essential to the performance of your garage floor epoxy system.
Our urethane increases UV resistance and prevents yellowing. Increases chemical resistance, resistance to tires and makes the floor look amazing. In short, a good aliphatic urethane topcoat is the essential final step in any epoxy garage floor coating project! It is VOC compliant in every state except California.
Recoat Times
One of the most common questions we have is recoat times. Our suggestions are as follows — based on 70 degree temperature:

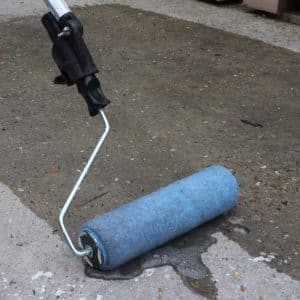

- Prime the floor (TL015): THEN Wait 7-10 Hours but Never more than 24 Hours.
- Epoxy Coat (TL707HS): THEN Wait 8-12 HOurs but never more than 24 hours
- Top Coat (TL356): Then Wait 9-13 hours before any additional coats. 24 hours for very light foot traffic and 7 days for full use.
